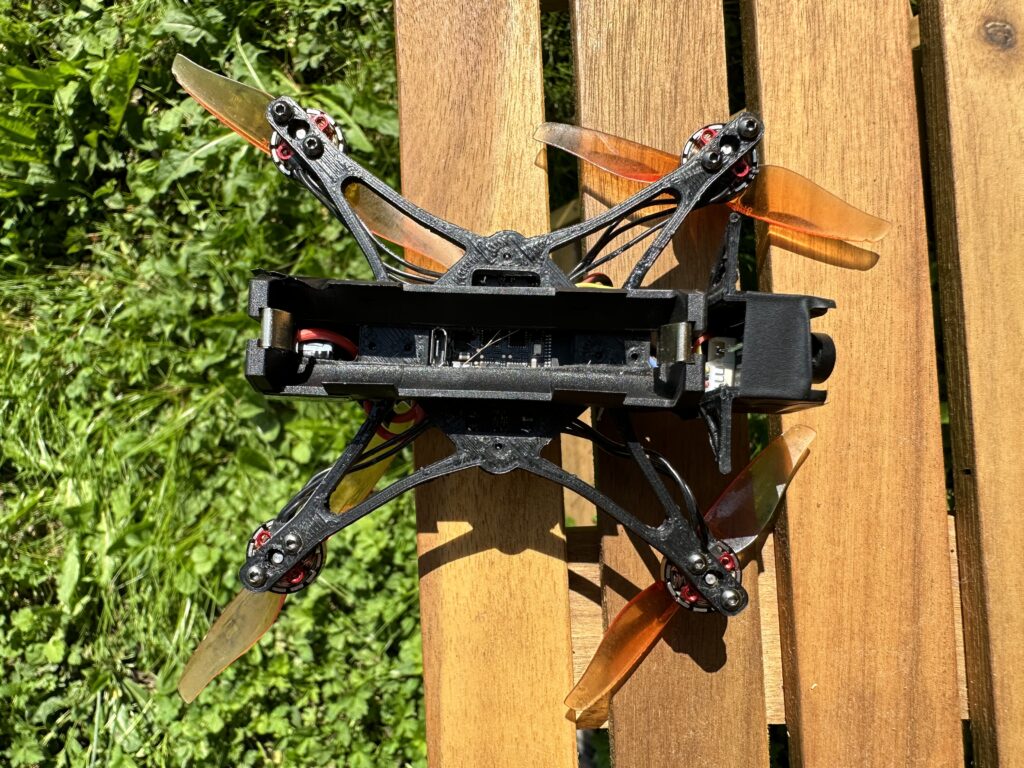

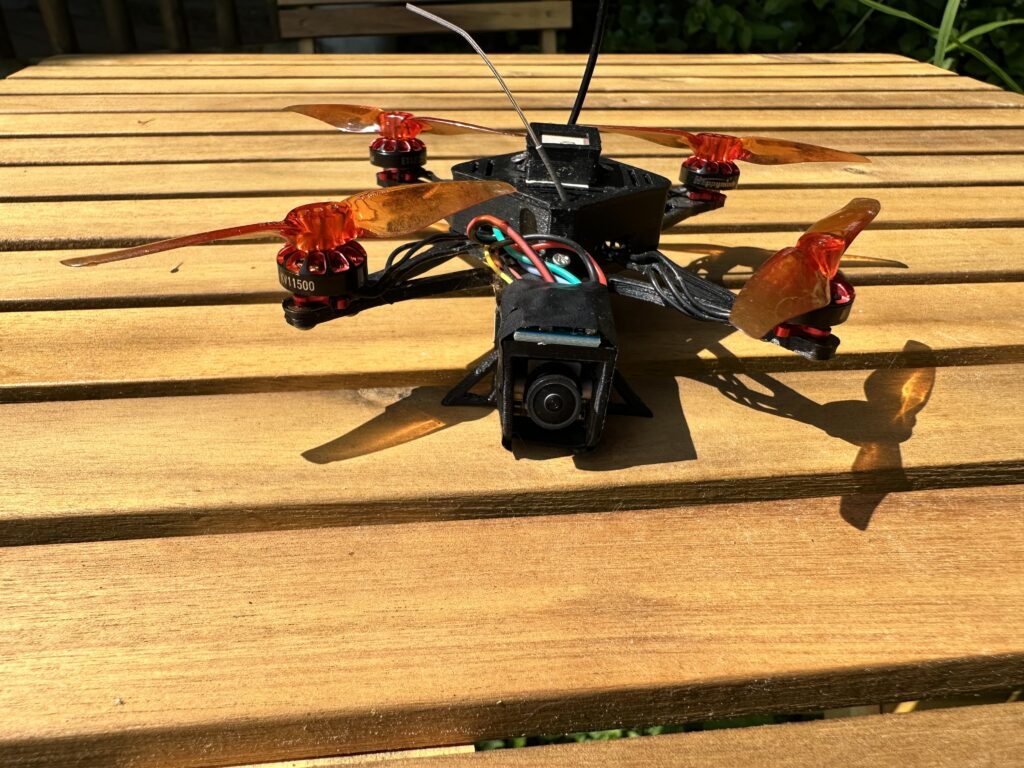

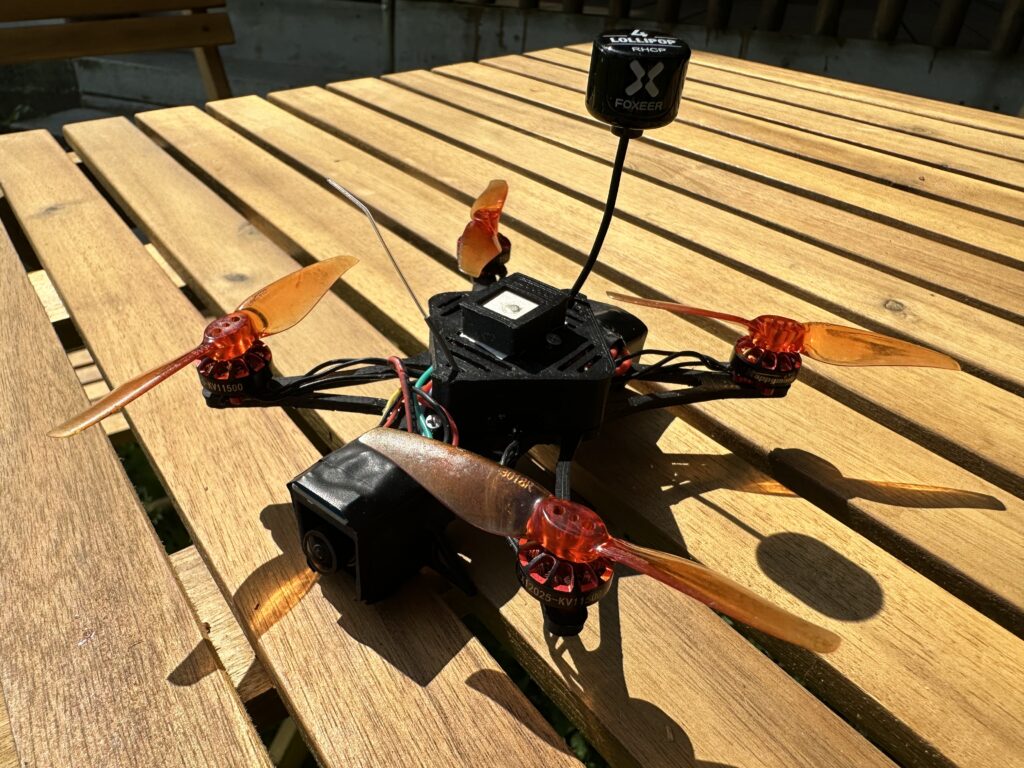

Introducing the Nano3LRG, a compact 3D printed drone designed for long-range flights. With a weight of around 100g and a 1S Li-ion battery, it offers approximately 20 minutes of flight time. The drone features a customizable 3D-printed frame and powerful brushless motors for stability and precise control. Equipped with GPS, a magnetometer, and a barometer, it is well-suited for long-range flights, providing accurate positioning, orientation, and altitude control. The Nano3LRG is an ideal choice for aerial enthusiasts seeking a lightweight and versatile drone for extended flights.
Recommended parts:
- AIO Flight Controller -> JHEMCU GSF405A-BMI
- GPS Modul ->NameLessRC TinyGPS
- VTX Modul -> HGLRC zeus nano VTX 5,8g
- Brushless Motors -> Happymodel EX 1202.5 KV11500
- Propeller -> GEMFAN 3018
- FPV Camera -> CADDX ANT 1200TVL
- Battery Case -> Battery Case 18650
- Battery -> Murata US18650VTC6 3000mAh
Download the STL files for the drone from Thingiverse
Flight Controller firmware
- Betaflight 4.4.2
- My settings (CLI Diff) can be found on my Github account
Parts to be printed:

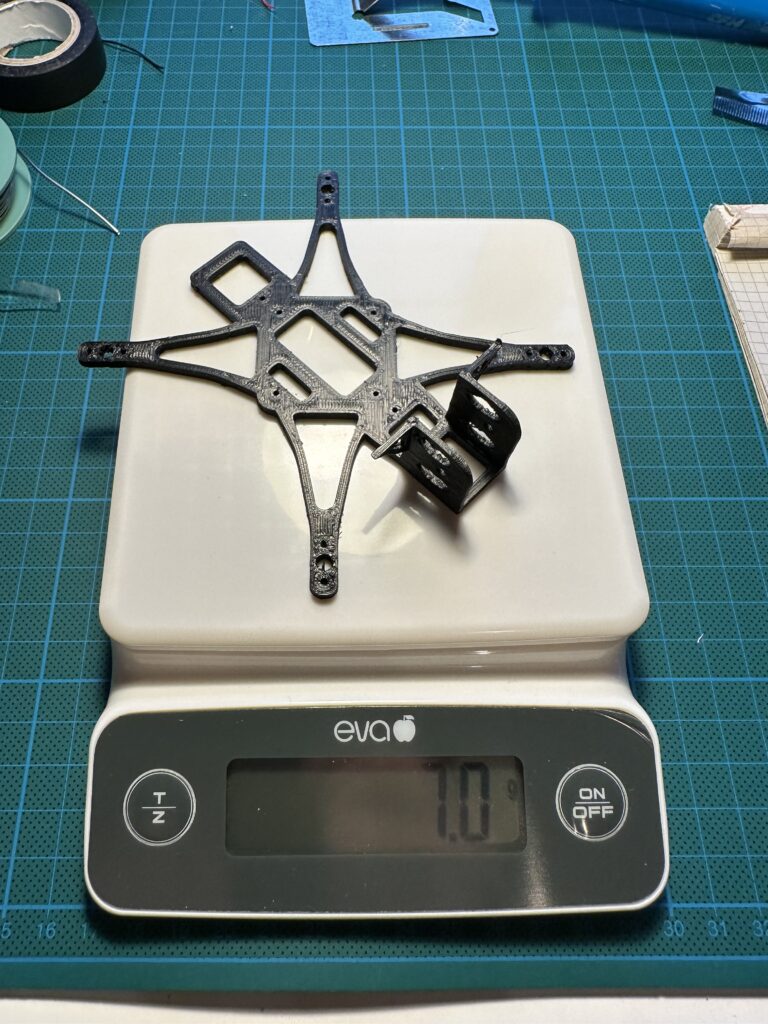

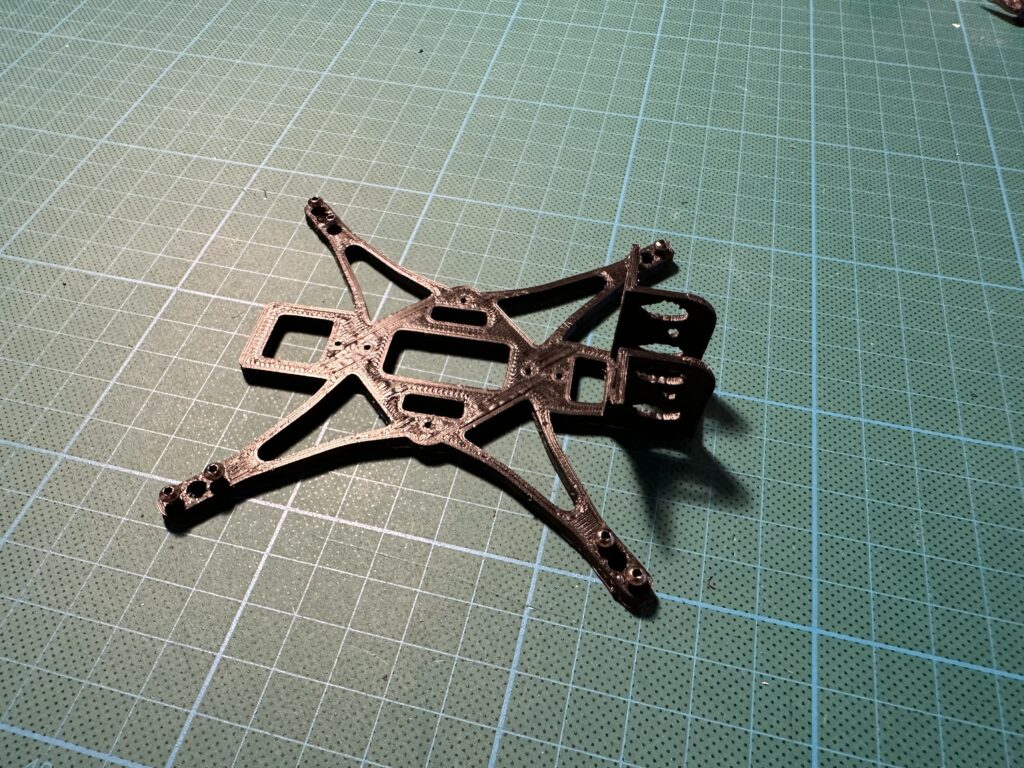

- Mainframe -> 7g

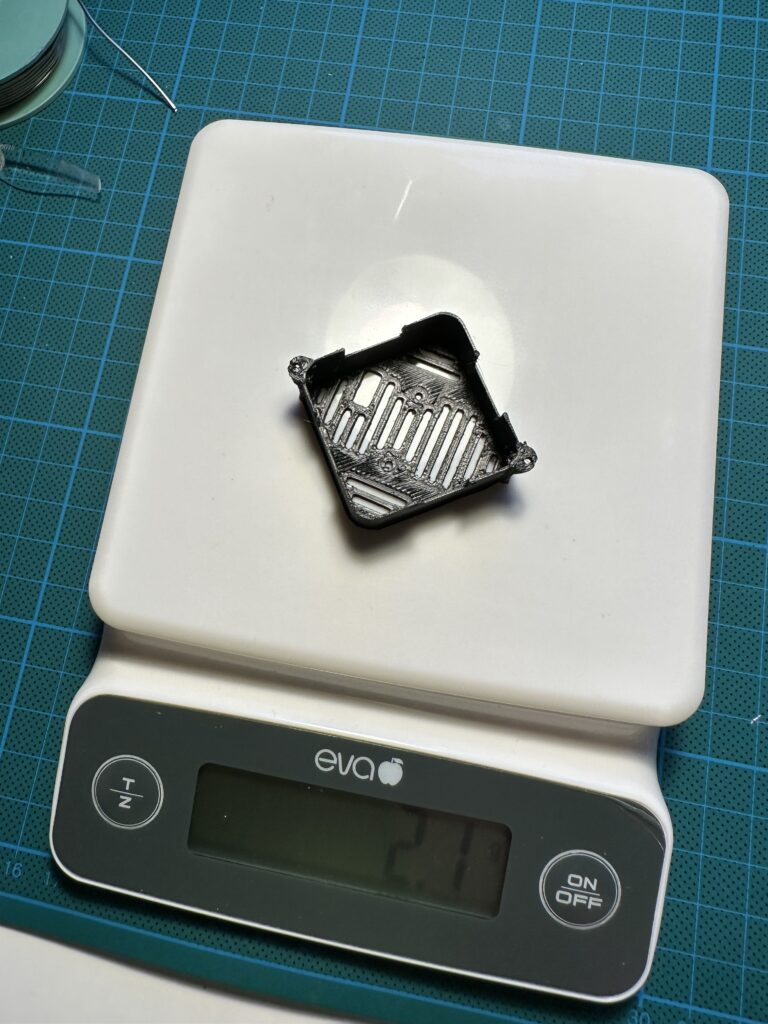

- Canopy -> 2.1g

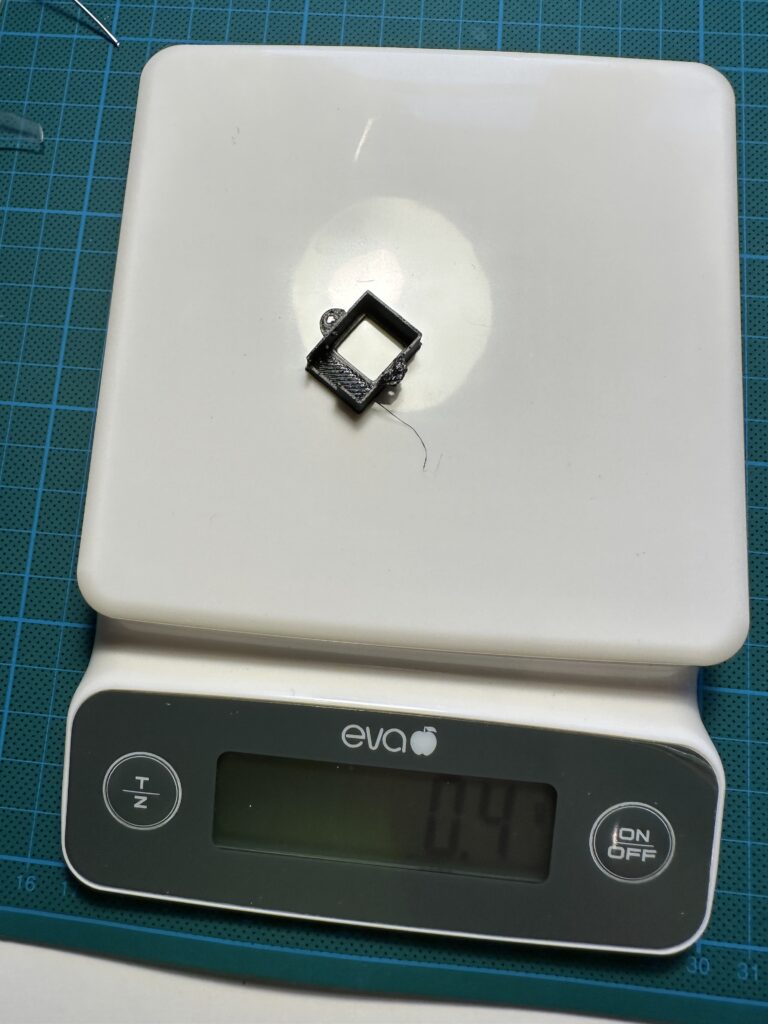

- GPS Case -> 0.4
Total frame weight = 9.5g
Based on my experience, my recommendation would be to use ABS for printing the drone. ABS’s UV resistance and added stability in crash situations make it a suitable choice. However, please keep in mind that PLA is also a viable option due to its hardness and ease of printing. Ultimately, the choice depends on your specific requirements and preferences.
I used Cura 5.2.2 as my slicing software for the printing process.
Important! Union Overlapping Volumes must be set!
Recommended settings for ABS printing:
Recommended settings for PLA printing:
